DDC 2P Differential RCBO Breaker Fireproof Shell Multi Circuit Breaker

Name: DDC 2P Differential RCBO Breaker Fireproof Shell Multi Circuit Breaker
Brand: NBSE/OEM
Price: 1 USD

China DDC 2P Differential RCBO Breaker Fireproof Shell Multi Circuit Breaker wholesale

Brand Name : NBSE/OEM

Model Number : DDC

Certification : CE, ISO9000

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30,000pcs per month

Delivery Time : 15-25days

Packaging Details : Export Carton

Type : Molded Case

Poles : 2P

Rated Voltage : 220V/240V

Rated Current : 10-15-20-25-30A

Leakage Operating : 300mA, 500mA

Standard : NFC61450,NFC62411,IEC61009

Shell : Fire-proof

Application : household,Terminal distribution,Electricity Distribution Room

Breaking capacity : 6KA,4KA

Oem : YES

Contact Now

NBSe DDC RCBO 2P Differential Circuit Breaker 10-30A 500mA 10-15-20-25-30A,2 pole rcbo

1. Application

The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.

Feature as below:

1)This product has a high level of safety protection.

2)Not affected by ambient temperature.

3)Multi-step adjustable of rated current.

4)Rated current digital display.

5)With anti-stealing function

2.Specification and Configuration

POLE: 2P, 4P
Ue: 230/400V
In: 5-15A(5, 10, 15)A;

10-30A(10, 20, 30)A;

10-30A(10, 15, 20, 25, 30)A;

30-60A(30, 45, 60)A;

60-90A(60, 75, 90)A
Breaking Capacity : 3KA

Residual current: 300mA, 500mA

3.Outshell and installation dimensions

DDC BACO Adjustable circuit breaker.pdf

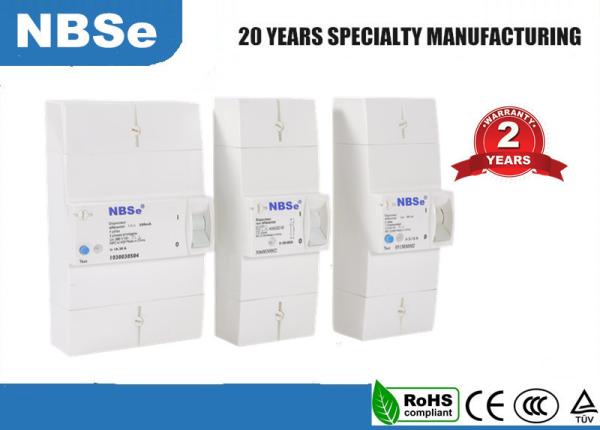

DDC 2P Differential RCBO Breaker Fireproof Shell Multi Circuit Breaker Images
